1:8 SC/APC Cassette Type PLC splitter For FTTH

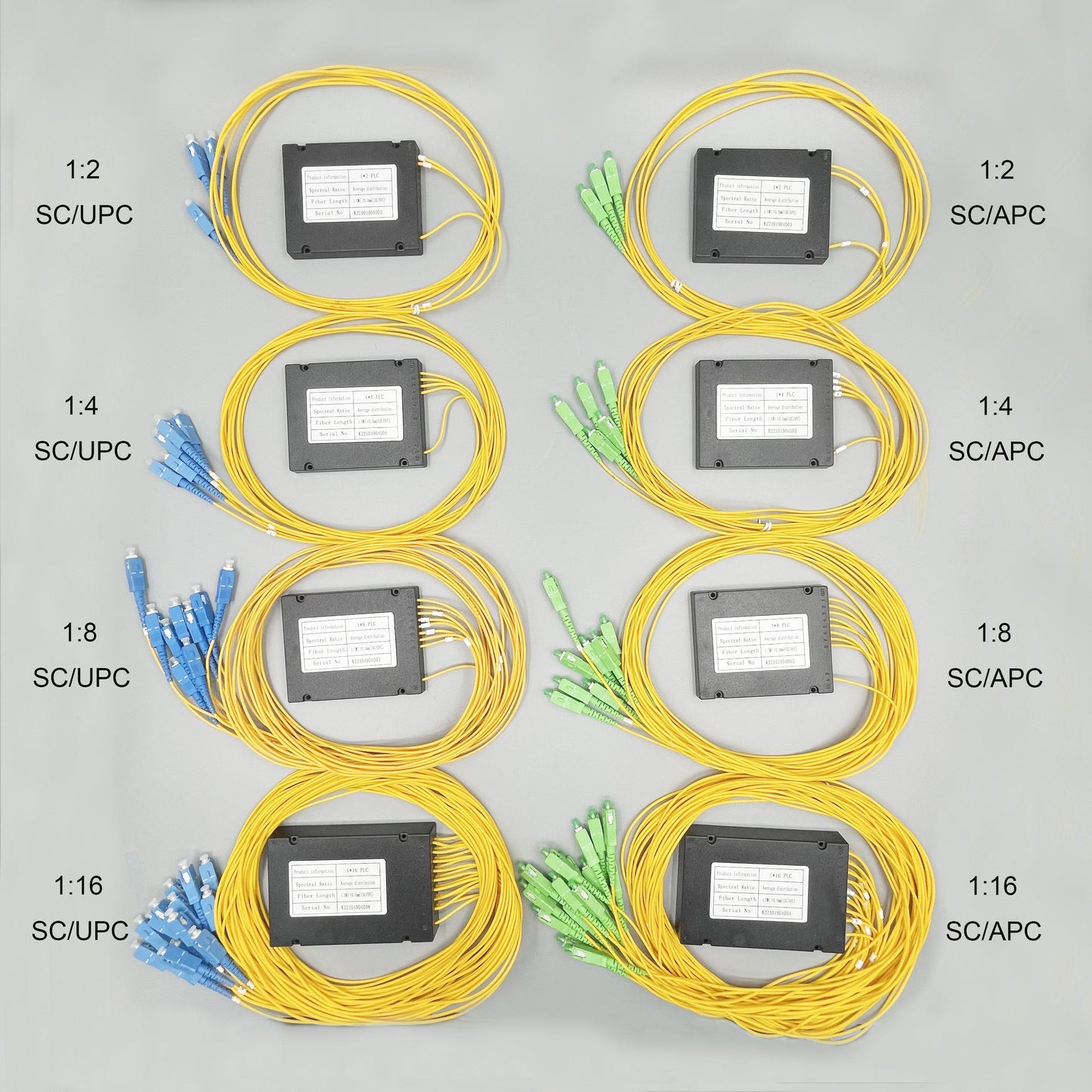

1:8 SC/APC Cassette Type PLC Splitter
This 1:8 SC/APC cassette type PLC splitter is used in FTTH and FTTX networks to distribute one optical input into eight outputs. The cassette structure protects the splitter module and supports clean installation in fiber boxes, closures, and ODF systems.
Key Features
- 1:8 splitting ratio for passive optical access networks.
- SC/APC connector configuration for low-reflection connections.
- Cassette type structure for protected installation.
- G657A1 0.9mm fiber for compact internal routing.
- Suitable for FTTH distribution boxes, closures, and ODF systems.
Technical Specifications
| Product type | Cassette type PLC splitter |
| Splitting ratio | 1:8 |
| Connector | SC/APC |
| Fiber type | G657A1, 0.9 mm |
| Wavelength | 1310 / 1550 nm |
| Insertion loss | ≤ 10.2 dB |
| Polarization dependent loss | ≤ 0.3 dB |
| Application | FTTH, FTTX, box, closure, ODF |
Wholesale & Shipping
Wholesale checkout is available from 10 pcs per item. For project orders, freight will be confirmed after checkout based on destination and shipping method.
