1:8 SC/UPC ABS Cassette type PLC splitter fiber box type PLC for ftth
1:8 SC/UPC ABS Cassette PLC Splitter

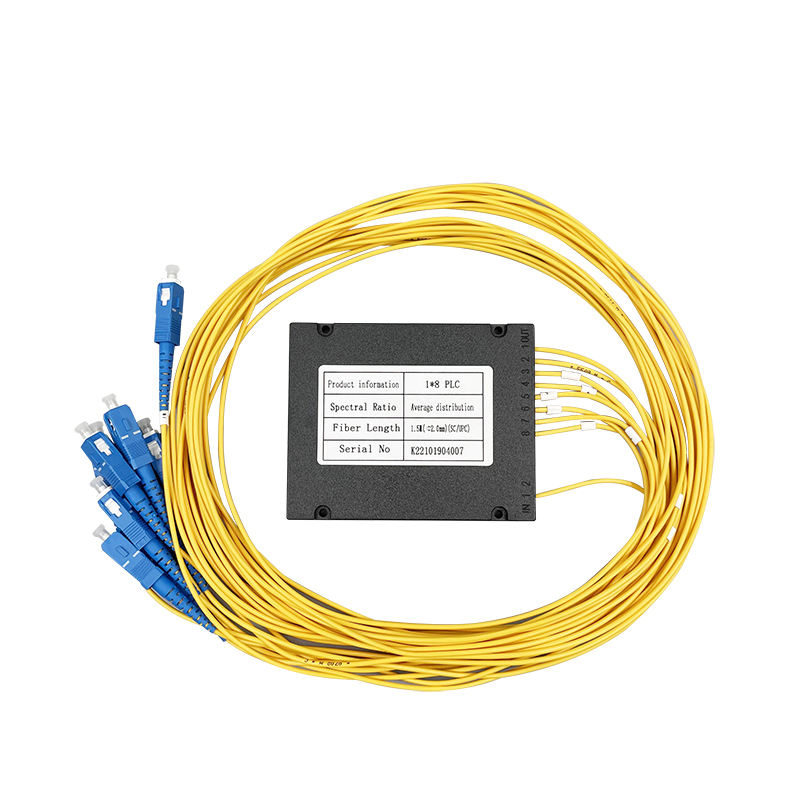

This 1:8 SC/UPC ABS cassette PLC splitter is designed for FTTH and FTTX optical distribution networks. The cassette structure protects the splitter and helps simplify installation inside fiber distribution boxes, closures, and ODF units.
Key Features
- 1:8 splitting ratio for passive optical distribution.
- SC/UPC connector configuration for standard UPC network use.
- ABS cassette type for protected and organized installation.
- G657A1 0.9mm fiber for compact internal routing.
- Suitable for FTTH boxes, closures, and ODF applications.
Technical Specifications
| Product type | ABS cassette PLC splitter |
| Splitting ratio | 1:8 |
| Connector | SC/UPC |
| Fiber type | G657A1, 0.9 mm |
| Wavelength | 1310 / 1550 nm |
| Insertion loss | ≤ 10.2 dB |
| Polarization dependent loss | ≤ 0.3 dB |
| Application | FTTH, FTTX, box, closure, ODF |
Wholesale & Shipping
Wholesale checkout is available from 10 pcs per item. Courier, air freight, and sea freight options can be confirmed after checkout.
